• EnVision LED-CBT-2X4-5P50-5CCT-EMB LED Troffer
1 1

EnVision

EnVision LED-CBT-2X4-5P50-5CCT-EMB – C-Line EMB

EnVision LED-CBT-2X4-5P50-5CCT-EMB – C-Line EMB

$238.00
$238.00
Sale Sold out

LED-CBT-2X4-5P50-5CCT-EMB
Download Spec Sheet (PDF)
Product Overview

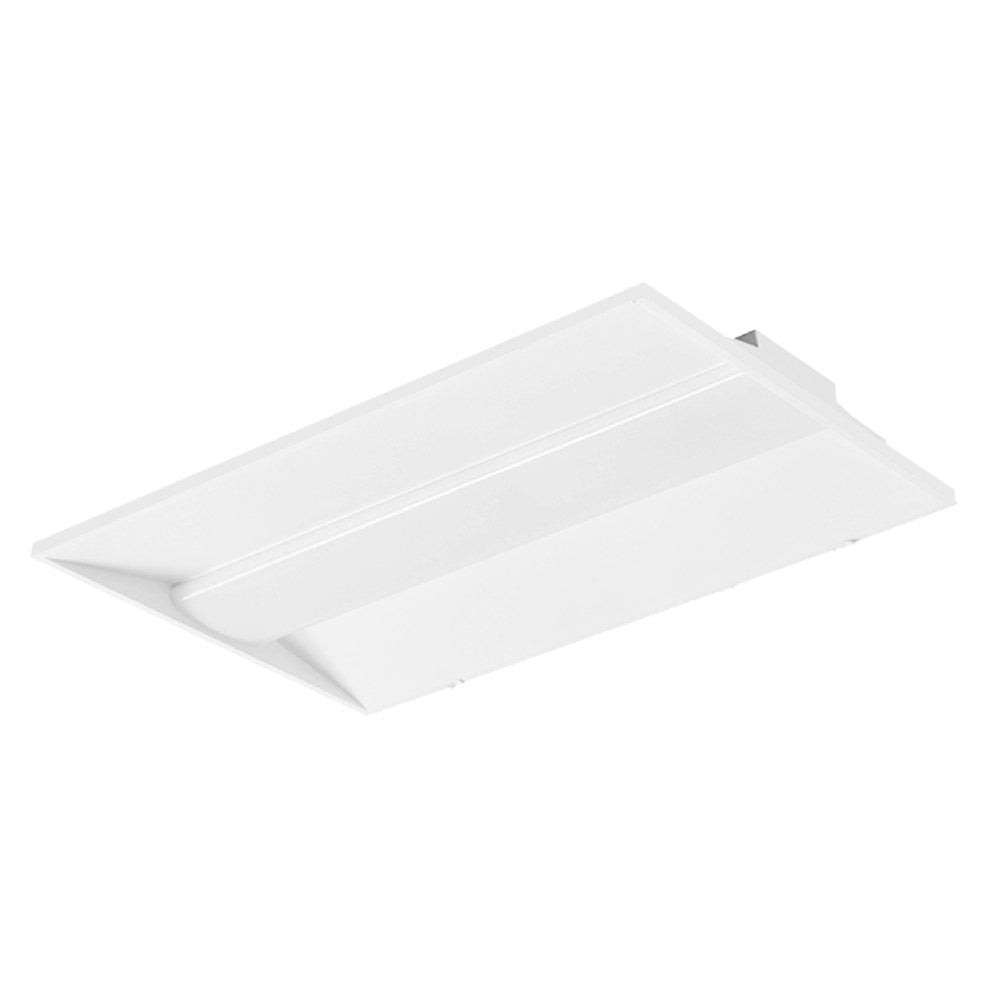

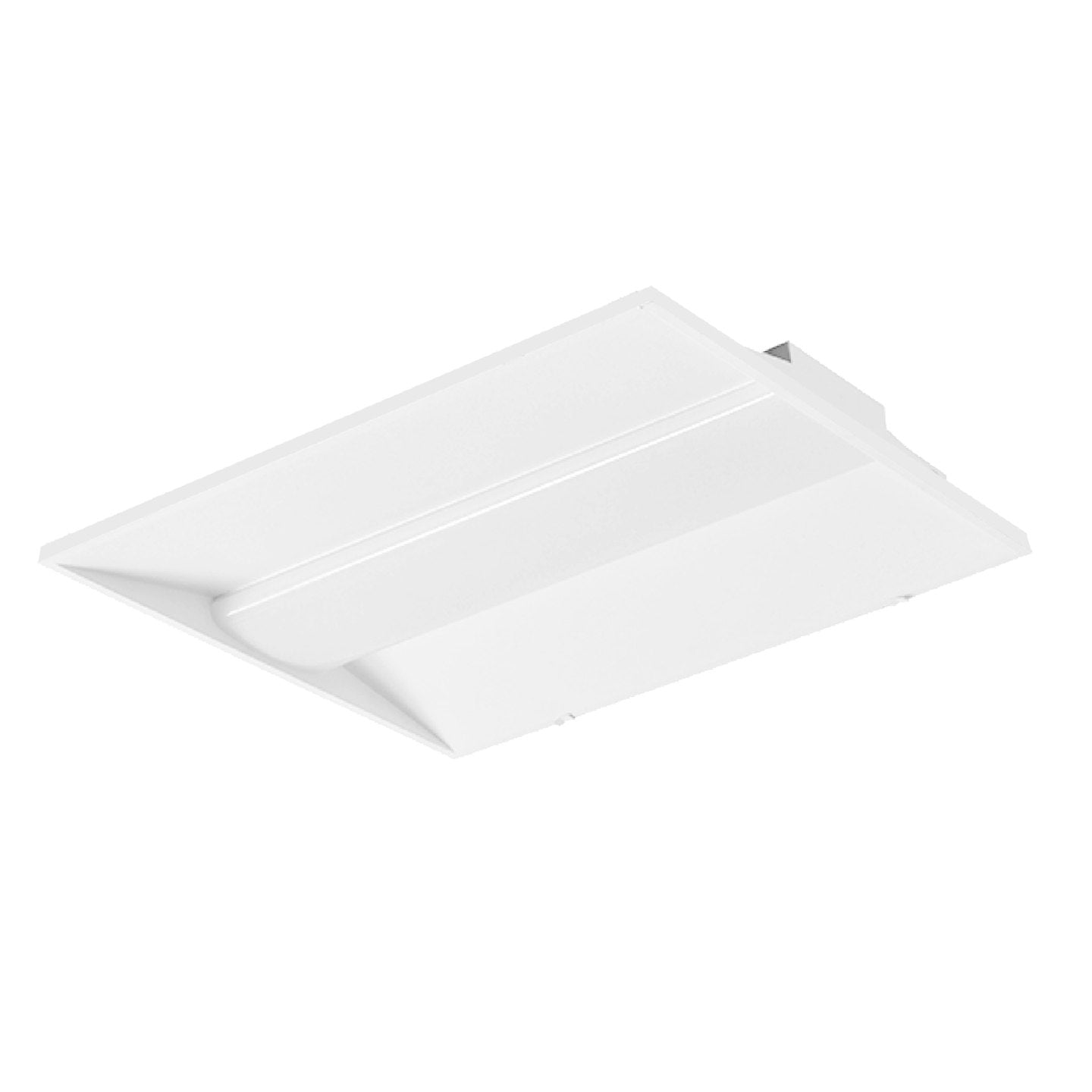

The EnVision C-Line EMB (LED-CBT-2X4-5P50-5CCT-EMB) is a commercial-grade led troffer delivering 50/40/30/25/20W, 6,250/5,625/5,000/4,375/3,750 lm, Selectable 30/35/ 40/50K. Engineered for reliable performance and easy specification.

Key Features
  • Wattage: 50/40/30/25/20W
  • Lumens: 6,250/5,625/5,000/4,375/3,750 lm
  • Color Temperature: Selectable 30/35/ 40/50K
  • Voltage: 120-277V
  • Dimming: 0-10V
  • CRI: >80
  • IP Rating: Damp Location
  • Beam: 110°
  • Finish: White
  • Listing/Warranty: UL/ DLC Prem/ 5 Yrs
Technical Specifications
Brand EnVision
Model / SKU LED-CBT-2X4-5P50-5CCT-EMB
Type LED Troffer
Wattage 50/40/30/25/20W
Lumens 6,250/5,625/5,000/4,375/3,750 lm
Color Temperature Selectable 30/35/ 40/50K
Voltage 120-277V
Dimming 0-10V
CRI >80
IP Rating Damp Location
Beam Angle 110°
Finish White
Size 2x2
Box Qty 2
Certification / Warranty UL/ DLC Prem/ 5 Yrs
UPC 810143713442
ES/DLC ID S-CS4N2Q

Lumera Electric supplies genuine EnVision commercial LED lighting with full manufacturer specifications and competitive project pricing.
