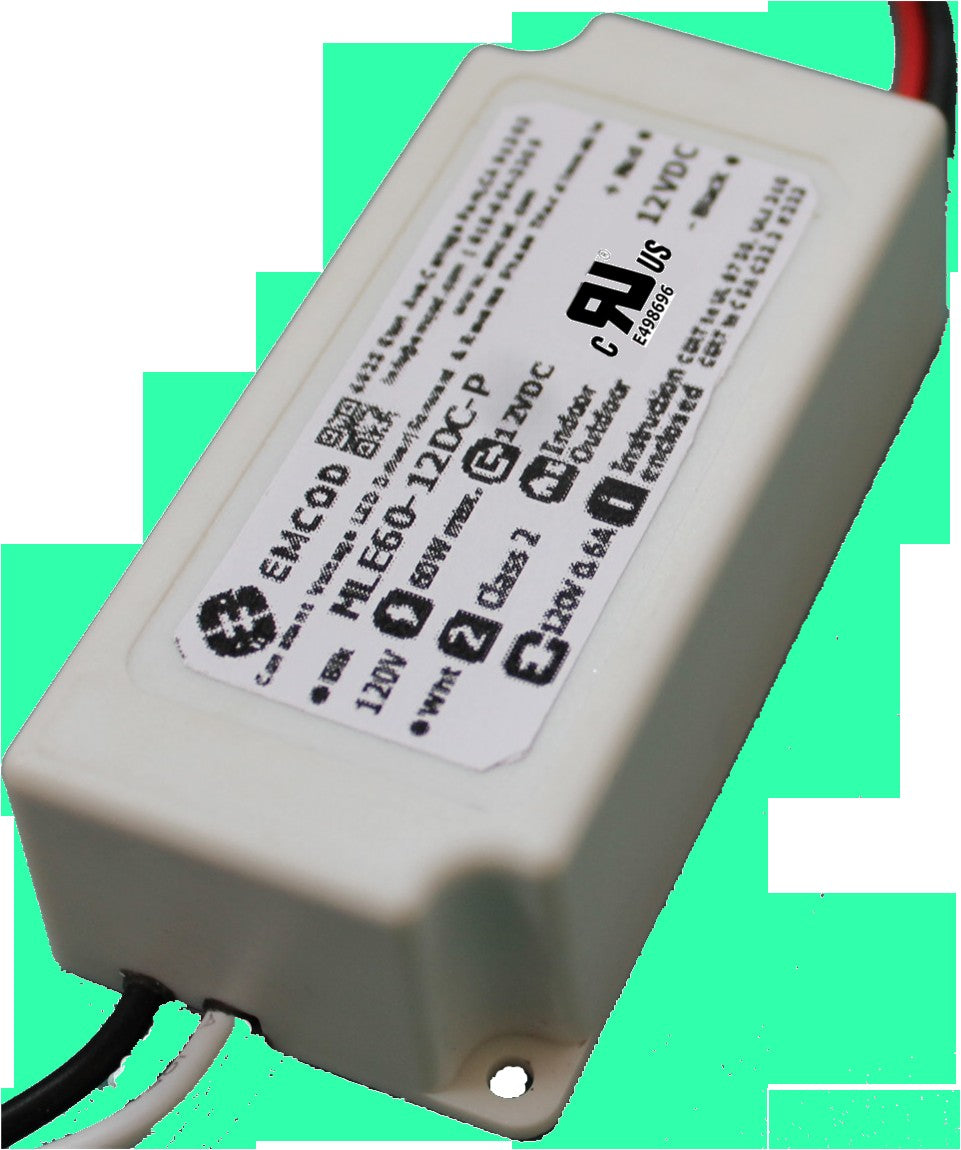

• EMCOD MLE60-12DC-P Low Profile Phase-Cut Dimmable LED Driver 60W 12VDC Class 2
1 1

EMCOD Lighting Group

EMCOD MLE60-12DC-P Low Profile Phase-Cut Dimmable LED Driver 60W 12VDC Class 2

EMCOD MLE60-12DC-P Low Profile Phase-Cut Dimmable LED Driver 60W 12VDC Class 2

$54.75
$54.75
Sale Sold out

MLE60-12DC-P

EMCOD MLE60-12DC-P is a low profile phase-cut dimmable led driver used for compact LED driver installs. The manufacturer file lists 60W max load, 12V DC output, Class 2: YES, dimensions H = 1.57, W = 3.3, D = 0.98.

SKU/Item Number: MLE60-12DC-P

Key Features

  • SKU/Item Number: MLE60-12DC-P
  • Product Type: Low Profile Phase-Cut Dimmable LED Driver
  • UPC: 810064710292
  • Max Load: 60W
  • Output: 12V DC
  • Class 2: YES
  • Dimensions: H = 1.57, W = 3.3, D = 0.98
  • Low-profile compact plastic enclosure
  • Phase-cut dimmable electronic LED driver
  • Class 2 construction on supported models
  • Plastic enclosure suitable for dry and damp locations
  • UL 8750 and UL 1310 compliance shown on official EMCOD product page for supported models

Technical Specifications

Brand EMCOD
SKU / Item Number MLE60-12DC-P
Product Type Low Profile Phase-Cut Dimmable LED Driver
UPC 810064710292
Max Load 60W
Output 12V DC
Class 2 YES
Case Quantity 12
Case Weight 12
Dimensions H = 1.57, W = 3.3, D = 0.98
Input Voltage 120V 50/60Hz on supported MLE-P models
Output Type Constant voltage
Dimming Forward and reverse phase dimming family
Housing Plastic suitable for dry and damp locations
Compliance UL 8750 and UL 1310 on supported Class 2 models

Use Cases

  • compact LED driver installs
  • 4-inch junction box installations
  • low-voltage LED tape lighting
  • dry and damp location LED lighting
