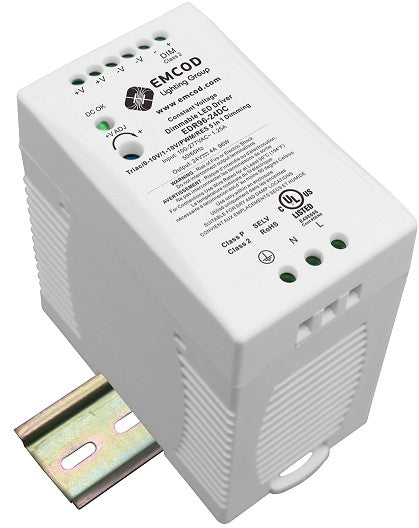

EMCOD EDR96-24DC Universal 5-in-1 Dimmable LED Driver 96W 24VDC Class 2

EMCOD EDR96-24DC Universal 5-in-1 Dimmable LED Driver 96W 24VDC Class 2

$127.45
$127.45
Sale Sold out

EDR96-24DC

EMCOD EDR96-24DC is a universal 5-in-1 dimmable led driver used for low-voltage LED strip lighting. The manufacturer file lists 96W max load, 24V DC output, Class 2: YES, dimensions H = 4.02, W = 2.1, D = 3.54.

SKU/Item Number: EDR96-24DC

Key Features

  • SKU/Item Number: EDR96-24DC
  • Product Type: Universal 5-in-1 Dimmable LED Driver
  • UPC: 810064711794
  • Max Load: 96W
  • Output: 24V DC
  • Class 2: YES
  • Dimensions: H = 4.02, W = 2.1, D = 3.54
  • Universal 100-277V input on verified EDR model
  • 5-in-1 dimming support
  • Plastic enclosure suitable for dry and damp locations
  • Class 2 construction on supported models
  • UL 8750 and UL 1310 compliance on supported models

Technical Specifications

Brand EMCOD
SKU / Item Number EDR96-24DC
Product Type Universal 5-in-1 Dimmable LED Driver
UPC 810064711794
Max Load 96W
Output 24V DC
Class 2 YES
Case Quantity 20
Case Weight 19
Dimensions H = 4.02, W = 2.1, D = 3.54
Input Voltage 100-277V 50/60Hz on verified EDR models
Dimming Triac forward/reverse phase, 0/1-10V, resistor, and PWM on official EDR spec sheet
Housing Plastic suitable for dry and damp locations
Compliance UL 8750 and UL 1310 on supported Class 2 models
Temperature Class Class B 130°C on verified EDR spec sheet

Use Cases

  • low-voltage LED strip lighting
  • commercial LED driver replacement
  • dimmable LED lighting systems
  • dry and damp location lighting
