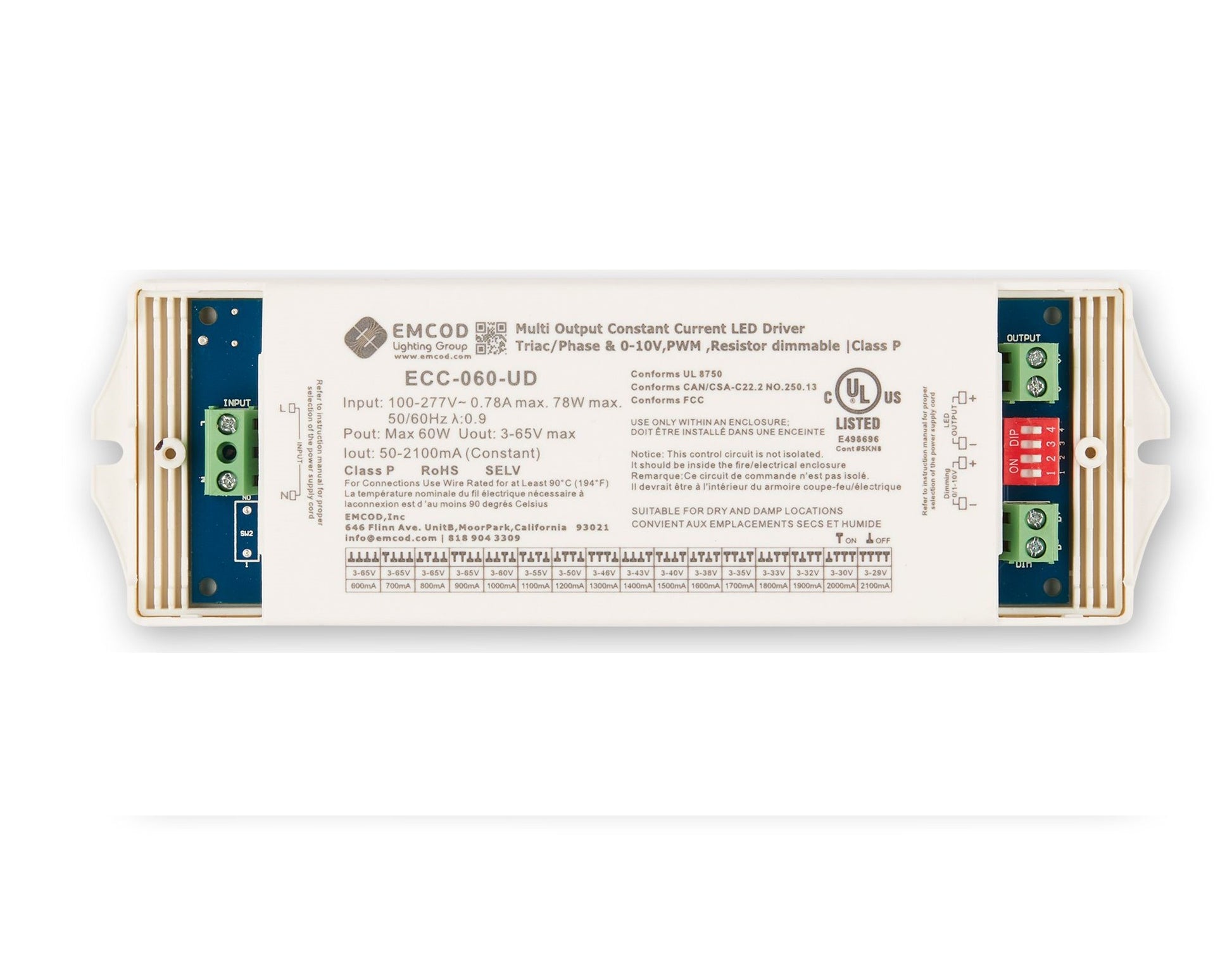

EMCOD ECC-060-UD Constant Current 5-in-1 Dimmable LED Driver 60W 3-65VDC Class 2
EMCOD ECC-060-UD Constant Current 5-in-1 Dimmable LED Driver 60W 3-65VDC Class 2
Regular price
$78.75
Regular price
Sale price
$78.75
SKU:ECC-060-UD
Quantity
Couldn't load pickup availability
EMCOD ECC-060-UD is a constant current 5-in-1 dimmable led driver used for constant-current LED fixtures. The manufacturer file lists 60W max load, 3-65VDC output, Class 2: YES, dimensions H = 2.4, W = 7.6, D = 0.95.
SKU/Item Number: ECC-060-UD
Key Features
- SKU/Item Number: ECC-060-UD
- Product Type: Constant Current 5-in-1 Dimmable LED Driver
- UPC: 810064711848
- Max Load: 60W
- Output: 3-65VDC
- Class 2: YES
- Dimensions: H = 2.4, W = 7.6, D = 0.95
- Constant-current LED driver family
- Universal 100-277V input on verified ECC model
- 5-in-1 dimming family
- Plastic enclosure suitable for dry and damp locations
- UL 8750 and CSA certification listed on official EMCOD page
Technical Specifications
| Brand | EMCOD |
| SKU / Item Number | ECC-060-UD |
| Product Type | Constant Current 5-in-1 Dimmable LED Driver |
| UPC | 810064711848 |
| Max Load | 60W |
| Output | 3-65VDC |
| Class 2 | YES |
| Case Quantity | 20 |
| Case Weight | 18 |
| Dimensions | H = 2.4, W = 7.6, D = 0.95 |
| Input Voltage | 100-277V 50/60Hz |
| Output Type | Constant current |
| Dimming | Universal 5-in-1 dimming family |
| Housing | Plastic suitable for dry and damp locations |
| Compliance | UL 8750 and CSA C22.2 No. 250.13 on verified ECC model |
Use Cases
- constant-current LED fixtures
- commercial LED lighting
- architectural LED lighting
- dimmable LED driver replacement
